The size of the room housing the gantry of the CT unit shall not be less than 25 m2. CT architectural design CT interior design CT equipment planning and CT construction project management. Stamp of the Institution. 221 x 89 x 189. In this case the space needed to start is around 800-850 square feet. It has been in widespread use since the 1970s and is used to image many diseases and injuries. All dimensions are in cm Scale 150 Model Layout CT-Scan.

Name of the Institution.

Fri 10302015 - 0125. Viewing Glass 100 cm X 80 cm of 20 mm lead equivalence Model Name. Stamp of the Institution. Brilliance 64-channel Brilliance Big Bore Oncology. Also I would watch the results of your dosimetry reports. In this case the space needed to start is around 800-850 square feet.

20 Ct Scan Room Ideas Hospital Design Hospital Interior Healthcare Design

Ct scan room dimensions. If you do CT full time and your results are well below 10 percent of the annual dose limits it is likely that your control wall is shielded. All dimensions are in cm Scale 150 Model Layout CT-Scan. Typically it is presumed that the patient is about 1 meter above the floor.

In this case the space needed to start is around 800-850 square feet. CT Scan radiates high dose of X-rays and hence the shielding the CT scan room has to be designed carefully as per the CT Scan Room Layout recommended by authoritative agencies for eg. How much shielding is required.

Gantry dimensions H x W x D cm. CT architectural design CT interior design CT equipment planning and CT construction project management. The personnel that perform CT scans are called radiographers or radiology technologists.

Computed Tomography Shielding Material Distance from iso- centre 10 m 15m 20 m 25 m 30 Brick cm 28 27 235 20 188 Concrete cm 18 17 15 13 12 Lead cm 023 021 018 015 014 Any other material No. Stamp of the Institution. 203 x 239 x 94.

One is Gantry area where the patient undergoes CT scan study and the other is Couch area where the CT technicians operate the CT Console during the scans. Room dimensions are typically larger in size from 180 x 200 and up to 240 x 320. Of TVTs 338 TVT 303 TVT 278 TVT 258 TVT 243 TVT Interventional Radiology Cardiac Angiography.

The distance from the operator to tube was 34m. Site Planning for CT Location room dimensions Equip type Electrical HVAC Water Structural loading Shielding. CT scanners use a rotating x-ray tube and a row of detectors placed in the gantry to.

64 - 128 spherical detectors with 2Danti-scatter. CT Room Design Our CT design experience includes a wide range of private CT offices and hospital CT suites.

Ct Scan Room Hospital Design Hospital Plans Healthcare Interior Design

Floor Plan Ct Scan Room Dimensions Ct Scan Machine

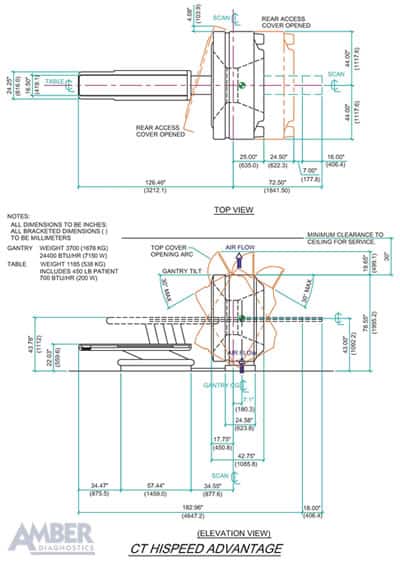

Ct Machine Site Plan Checklist Amber Diagnostics

Ct Machine Site Plan Checklist Amber Diagnostics

Https Www Aapm Org Meetings 07ss Documents Stevensshielding Pdf

Ct Scan Rooms Computerized Tomography Rooms X Ray Rooms

20 Ct Scan Room Ideas Hospital Design Hospital Interior Healthcare Design

Ct Scan Room Design Guidelines Ct Scan Machine

Ct Scan Room Bim1modeler Ct Scan Room Revit Model All Equipment Shown In Images Are In The Revit

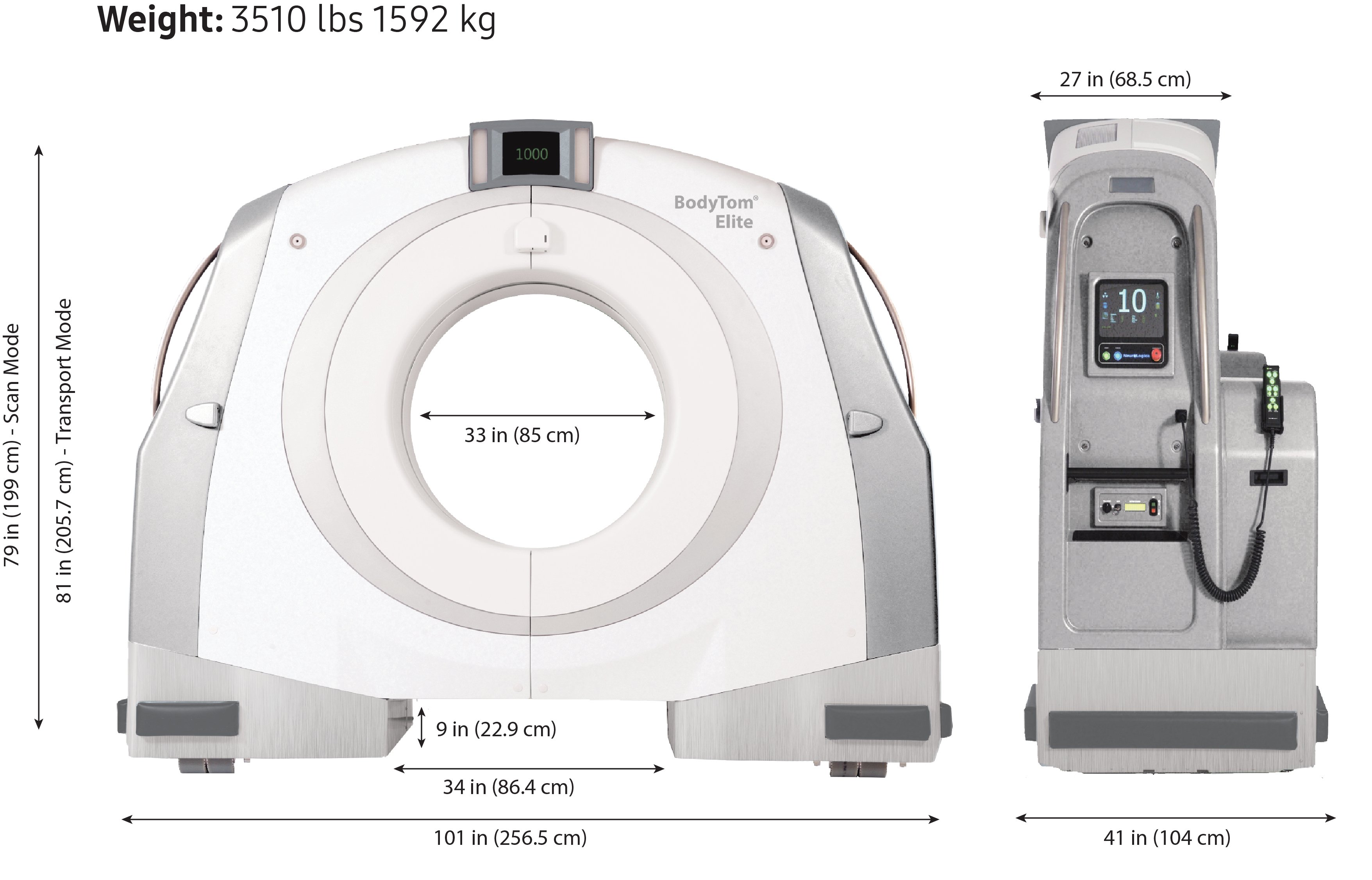

Bodytom Elite Neurologica

Spect Ct Imaging Room Aushfg

Ct Machine Site Plan Checklist Amber Diagnostics

Hospital Planning Imaging Departments Design Collaborative

Ct Scan Room Construction Ct Scan Machine

Ct Scan Wikipedia

Cartesion Prime Molecular Imaging Canon Medical Systems Usa

Http Www Avanttec Net Avan Uploads 2019 07 Model Room Layout Pdf

Interventional Radiology Layout Copy Room Planning Architectural Design House Plans Layout

Ct Imaging Control Room Aushfg

Jaypeedigital Ebook Reader

Https Www Aapm Org Meetings Amos2 Pdf 29 7919 68214 893 Pdf

X Ray Room Design Layout Page 7 Line 17qq Com

Differences Betweeen X Rays Ct Scans Mri S Envision Radiology

Https Encrypted Tbn0 Gstatic Com Images Q Tbn And9gcs8csw5c8nbaaqxfaunoa0i5bmu52euaiacrohk5mv6h3mfetth Usqp Cau

Cat Scan Room Cad Layout Cadblocksfree Cad Blocks Free

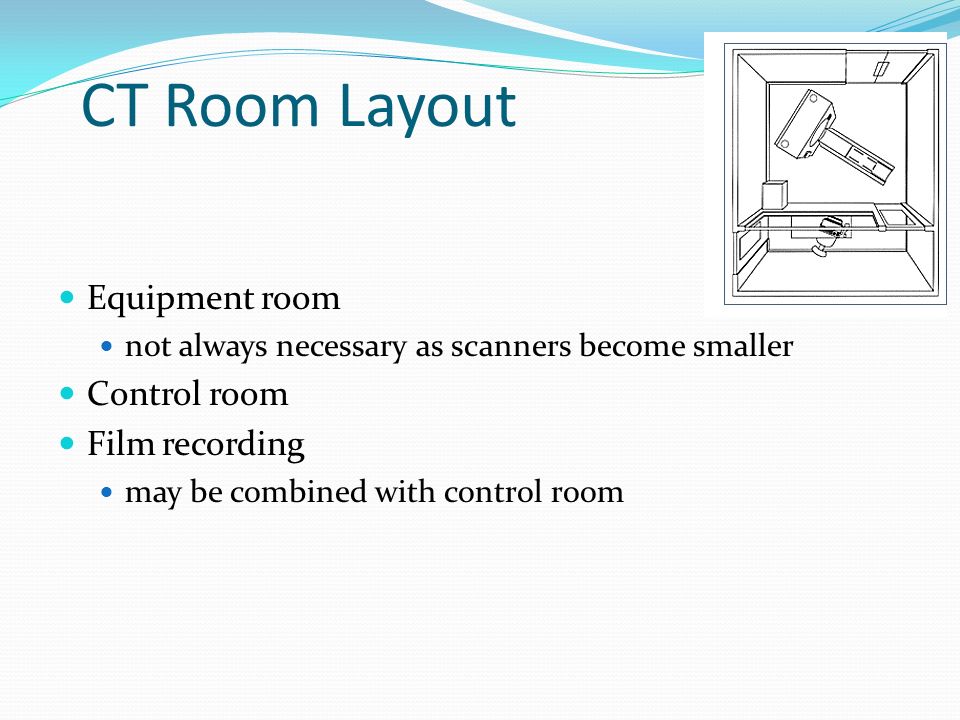

Ct Scan Room Layout Ct Scan Room Layout And Design

Figure A Possible Layout For A Pet Ct Facility Download Scientific Diagram

Ct Scanner Dimension Page 1 Line 17qq Com

Mr System Layout Questions And Answers In Mri

Room Size Does Matter When Purchasing A C Arm

Https Indico Cern Ch Event 670810 Contributions 2808032 Attachments 1572009 2480510 Jm Shielding Pdf

Ct Scan Room Flor Plan Page 1 Line 17qq Com

Philips Healthcare Preferred And Interactive Room Layouts

Somatom On Site

How Much Does A Veterinary Ct System Cost Sound Technologies

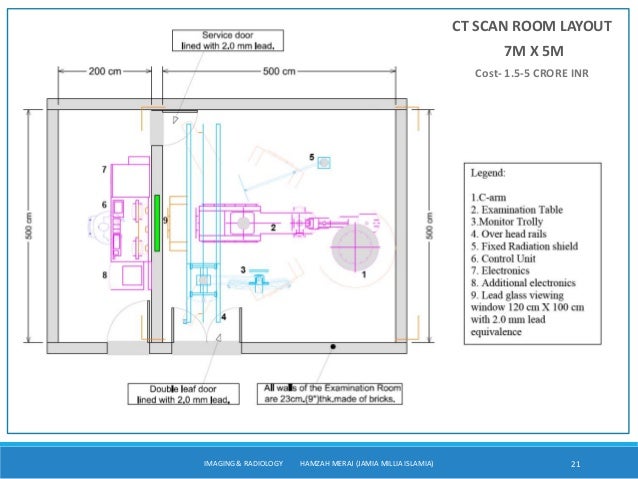

Ct Scan Room Layout Aerb Ct Scan Machine

Ct Scanner Bodytom Neurologica For Full Body Tomography 32 Slice Mobile

Typical Top View Plan Of The Ct Scan Room In Dwg Autocad File Cadbull

Https Indico Cern Ch Event 670810 Contributions 2808032 Attachments 1572009 2480510 Jm Shielding Pdf

Pet Ct Scanners A Hardware Approach To Image Fusion Sciencedirect

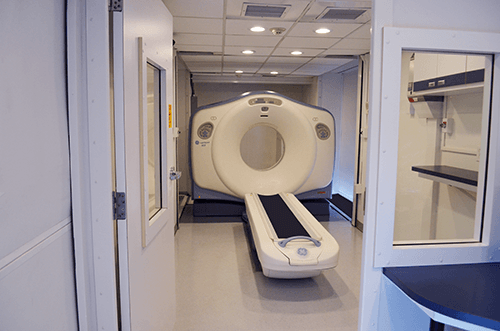

Mobile Ct Scanner Rentals And Leases Rent A Mobile Ct Scanner
